The flexible QH441 mobile cone crusher

The QH441 Mobile Cone Crusher is the most versatile heavy-duty cone crusher on the market today, designed for large-scale aggregate production. It incorporates the latest technological design concepts and requires minimal operator involvement to deliver consistent productivity. Tried and tested in thousands of real-world projects around the world, the QH441 is the ultimate solution to crushing needs, and is available in a wide range of chamber and eccentric configurations, giving it unrivalled flexibility. In addition, its positive-pressure chamber design effectively blocks dust from eroding the bushings and bearings, thus greatly extending service life. Four powerful hydraulic outriggers not only greatly improve the stability of the machine, but also provide the possibility of easy movement of the machine.

Materials Limestone, quartzite, pyroxene, iron ore, gold ore, copper ore, etc.
Application Concrete mixing plant, dry mortar, power plant desulphurisation, quartz sand, etc.
Capacity 340 t/h

CONTACT NOW down load to pdf

Product Details

Product Tags

The QH441 Mobile Cone Crusher is widely used in many industries such as mining, construction, highway and railway, and is especially favoured by large aggregate producers. Its high efficiency, stability and reliability perfectly match the high standard of crushing equipment required by these industries. With excellent performance, flexible configuration and stable and reliable performance, the QH441 has won wide acclaim in the market. Numerous users have commented that it not only significantly improves production efficiency but also effectively reduces operating costs, making it the preferred solution for crushing operations.
The advantages of QH441 cone crusher are obvious. Its positive-pressure chamber design effectively prevents dust from eroding the bushings and bearings, thus greatly extending the equipment's service life. In addition, the remote camera configuration allows the operator to easily observe the situation inside the crushing chamber from the ground, facilitating real-time monitoring and adjustment. At the same time, the crusher offers a wide range of crushing chamber types and eccentricity settings to meet the crushing needs of different users, demonstrating a high degree of flexibility. One of the most flexible heavy-duty cone crushers on the market, the QH441 is tailored to the needs of large aggregate producers, incorporating the latest technological design concepts to deliver continuous productivity with minimal operator intervention.

The flexible QH441 mobile cone crusher Applications

In the field of mining, QH441 Mobile Cone Crusher is the best in handling all kinds of metal ores. Whether it is hard iron ore or non-ferrous metal ore with impurities, QH441 can effectively refine and crush the ore with its excellent crushing capacity and stable operation characteristics. This is of great significance in improving the efficiency and quality of the subsequent beneficiation process. By means of the powerful crushing force and high-frequency impact force generated by the motor-driven eccentric shaft rotation, the QH441 is able to quickly and uniformly crush large ores into the required size range, thus maximising the utilisation and economic benefits of the ores.
The QH441 Mobile Cone Crusher also plays an important role in the preparation of construction materials. It can efficiently process sand, gravel, cement clinker, etc., and produce construction sand aggregates and crushed stone that meet standard specifications. This not only significantly improves the output and quality of construction materials, but also provides a solid and powerful support for building construction.The QH441 has a variety of crushing cavity designs, which can be flexibly adjusted according to different process requirements to meet the customised production requirements of construction sand aggregates and crushed stone.
In the metallurgical industry, QH441 mobile cone crusher is an important equipment in the raw material preparation process of iron and steel smelting. It can efficiently and stably process rocks and ore raw materials of various hardnesses, such as iron ore, copper ore, etc., to provide high-quality raw materials for iron and steel smelting. In addition, when processing coke, QH441 can also carry out fine separation and treatment of barren gas in the recovery of blast furnace gas, which further improves the efficiency and quality of metallurgical production.
In the field of road construction, QH441 mobile cone crusher is also one of the indispensable equipment. It is capable of efficiently processing sand, gravel, asphalt mixture, etc., and producing materials that meet the road construction standards.The QH441 has various crushing cavities, which can be flexibly adjusted according to the needs of different road constructions, so as to meet the requirements of customised production of road construction materials. This not only improves the efficiency and quality of road construction, but also provides a strong guarantee for the safety and smoothness of transport.
In the field of railway line construction, QH441 mobile cone crusher also plays an important role. It can process the stone and aggregate required for railway line construction, ensuring that it meets the standards and requirements of railway line construction. This not only helps to improve the efficiency and quality of railway line construction, but also provides a solid guarantee for the safety and smoothness of railway transport.

The flexible QH441 mobile cone crusher Advantages

Stability is one of the important indexes of crushing equipment, and QH441 mobile cone crusher excels in this aspect. It adopts high-quality materials and advanced manufacturing process to ensure the stability and durability of the equipment. Under long-time continuous operation, QH441 can still maintain stable crushing efficiency and good operating condition, reducing the downtime caused by equipment failure and improving users' productivity.
QH441 Mobile Cone Crusher is equipped with an intelligent operating system, which makes the operation of the equipment easier and more intuitive. Users can monitor and adjust the crusher in real time through the touch screen or remote control equipment, including adjusting the crushing cavity type, controlling the feeding speed and so on. This intelligent operation not only improves the working efficiency of the users, but also reduces the operating difficulty, so that even the first-time users can quickly get used to the crushing equipment.
QH441 Mobile Cone Crusher is highly flexible and can adapt to many different crushing needs. It has a variety of crushing chambers, which can be adjusted according to different material characteristics and crushing requirements, thus producing finished products that meet users' needs. In addition, the QH441 is equipped with a variety of eccentricity settings, allowing users to choose the most suitable crushing mode according to the actual situation, further improving the adaptability of the equipment. This flexibility enables the QH441 to perform at its best in a variety of application scenarios and meet the diverse needs of users.

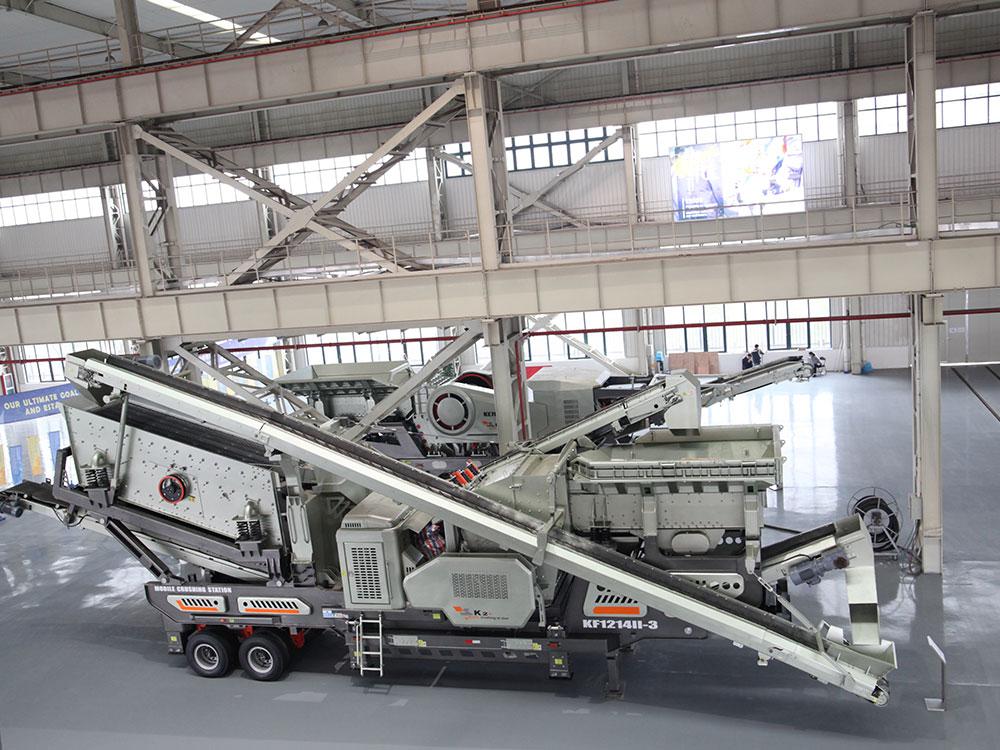

As a mobile crushing plant, the QH441's mobile performance is also praiseworthy. It adopts the advanced tracked or tyre-type mobile mode, which enables the equipment to be easily transferred between different sites. This powerful mobile performance enables the QH441 to adapt to a variety of different working environments and scenarios, providing users with more convenient and efficient crushing solutions.
The QH441 mobile cone crusher has a wide range of applications due to its multiple advantages such as high efficiency, flexibility, stability and intelligence. Whether it is in the fields of mining, construction material preparation, metallurgical industry, or chemical industry, road construction, water conservancy project, etc., QH441 can bring out its unique advantages and provide users with high-quality crushing services. This wide range of applications makes QH441 one of the most sought-after crushing equipment in the market.
The QH441 mobile cone crusher adopts advanced crushing technology and optimised crushing chamber design, which makes its productivity far exceed that of traditional crushing equipment. Its powerful crushing capacity is due to the huge squeezing force and impact force generated by the motor-driven eccentric shaft, which can quickly crush large materials to the required particle size, thus greatly improving the production efficiency. Whether in mining, construction material preparation, or other applications requiring efficient crushing, the QH441 is able to meet the needs of users with excellent production capacity.

The flexible QH441 mobile cone crusher Working Principle

The H441 Mobile Cone Crusher is uniquely constructed with a shaft and two interlocking cone crushing surfaces. When the cone crusher body starts to rotate, its tip generates a vector force transmitted in the direction of the axis, and this force acts directly on the working surfaces. During the crushing process, the material is fed into the crusher, and the motor drives the drive shaft to rotate, driving the inner and outer cone surfaces to rotate, thus forming a closed crushing chamber. Due to the continuous rotation of the inner and outer cone surfaces and the close fit of the cone walls, the materials in the crushing chamber are continuously squeezed and impacted from many directions, which ultimately achieves effective crushing.
The QH441 Mobile Cone Crusher utilises the advanced laminar crushing principle, which means that the material is subjected to a full range of forces in the crushing chamber, thus ensuring efficient crushing results. In addition, the crusher provides a variety of crushing chamber types and eccentricity settings to meet the crushing needs of different materials. Users can easily control the crushing ratio and finished product size by simply adjusting the crushing chamber type and eccentricity to meet diversified production requirements.
